• Bumpers, front and rear, painted silver, rear step includes pad
• Air dam, Ebony
• Fascia, front, Dark Smoke Gray

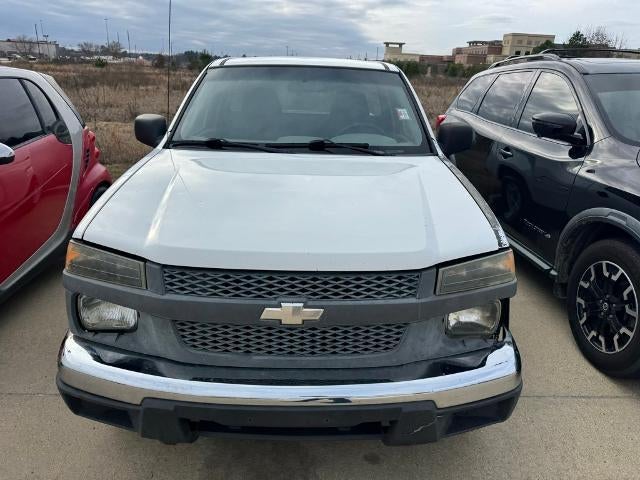

• Grille, composite, Light Charcoal surround, mesh and center bar with sealed beam headlamps
• Daytime running lamps, includes automatic exterior lamp control

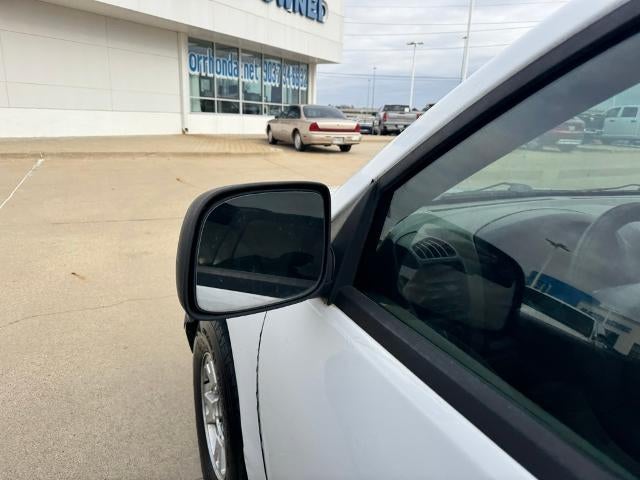

• Mirrors, outside rearview, Dark Smoke Gray, foldaway, manual
• Wipers, intermittent, front, includes pulse washers

• Fleet Trim, includes sealed beam headlamps, Grille, composite, Light Charcoal surround and center bar, Bumpers, front and rear, painted silver, (QCE) Tires, P205/75R15 all-season, blackwall, (PG1) Wheels, 15"x6" (38.1 cm x 15.2 cm), steel, (AM6) Seats, front, 60/40 split-bench, vinyl floor covering and molded plastic door trim (Requires a Fleet Account Number (FAN))

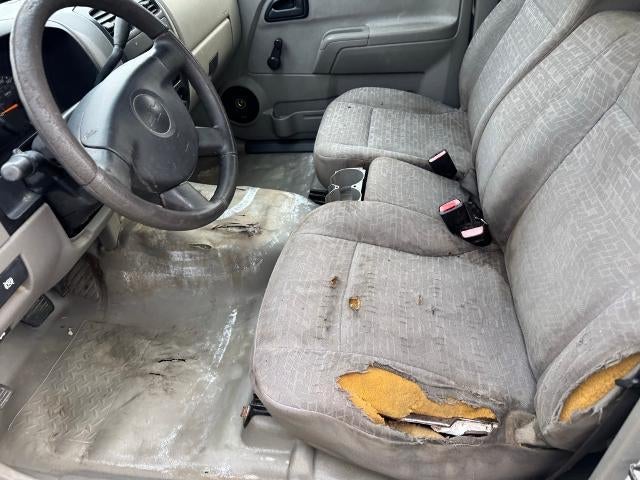

• Seats, front, Base Cloth, 60/40 split-bench, integral outboard head restraints and dual cupholders
• Floor covering, embossed rubberized vinyl full width floor covering

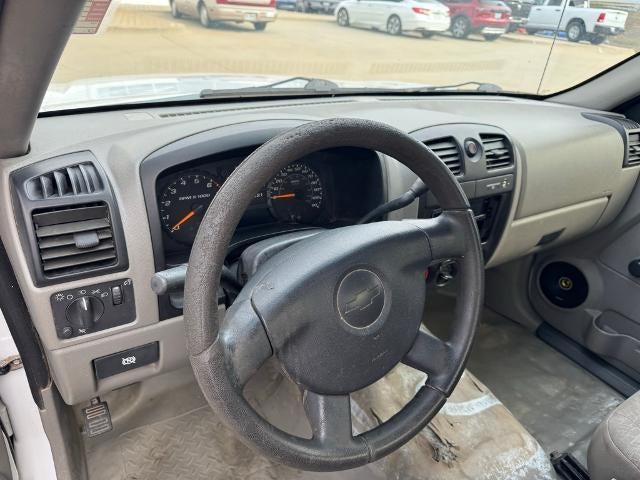

• Steering wheel, 4-spoke
• Steering column, non-tilt, steel sleeve, includes theft-deterrent locking feature
• Theft-deterrent system, PASSLock
• Warning tones, headlamp on, key-in-ignition, driver safety belt unfasten, turn signal on, critical Driver Information Center active
• Door locks, manual
• Windows, manual, driver and front passenger
• Sound system, ETR AM/FM stereo, includes seek-and-scan, digital clock, 2-speakers on Regular Cab and Chassis Cab Models and 4-speakers on Extended Cab models (May be substituted with (UL5) Sound system, delete)
• Power outlets, auxiliary, covered, 2, 12-volt

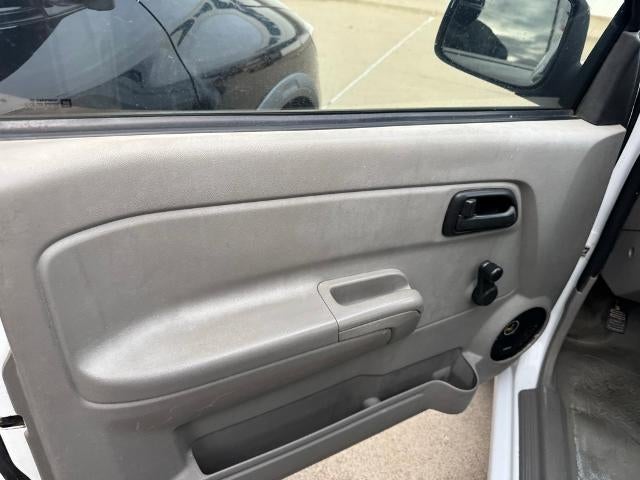

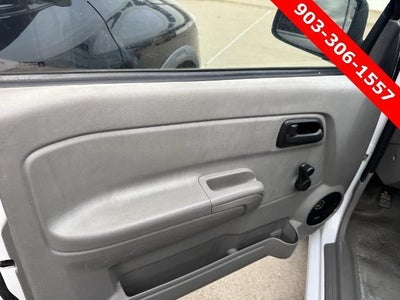

• Door trim, with integral armrest, driver and passenger side map pockets
• Mirror, inside rearview, prismatic
• Visors, padded, Cloth, includes vanity mirror, passenger-side
• Coat hooks, driver and passenger side

• Brakes, 4-wheel antilock, front disc/rear drum
• Air bags, frontal, driver and right front passenger, includes passenger side deactivation switch (Always use safety belts and proper child restraints, even with air bags. Children are safer when properly secured in a rear seat. See the Owner's Manual for more safety information)
• Safety belts, 3-point, outboard, driver and front passenger, adjustable with center front position lap belt
• Daytime running lamps, includes automatic exterior lamp control

ENGINE, 2.8L DOHC, 4-CYLINDER, MFI

• (175 HP [130.5 kW] @ 5600 rpm
• 185 lb.-ft. [249.7 N-m] @ 2800 rpm) (STD) Refer to the Engine and Axle section for compatibility requirements.

• Mileage
• EPA Fuel Economy Est - City (MPG): 21
• EPA Fuel Economy Est - Hwy (MPG): 27
• Electrical
• Cold Cranking Amps @ 0° F (Primary): 690
• Maximum Alternator Capacity (amps): 100
• Cooling System
• Total Cooling System Capacity (qts): - TBD -
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 2533
• Gross Axle Wt Rating - Rear (lbs): 2900
• Curb Weight - Front (lbs): 1761
• Curb Weight - Rear (lbs): 1352
• Gross Vehicle Weight Rating Cap (lbs): 4850
• Gross Combined Wt Rating (lbs): 5500
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 4000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 600
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 2400
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 360
• Suspension
• Suspension Type - Front: Coil Springs
• Suspension Type - Rear: 2-Stage Multi-Leaf
• Spring Capacity - Front (lbs): 2535
• Spring Capacity - Rear (lbs): 2900
• Axle Type - Front: Independent Coil
• Axle Type - Rear: Semi-Floating
• Axle Capacity - Front (lbs): 2533
• Axle Capacity - Rear (lbs): 2900
• Axle Ratio (:1) - Rear: 3.42
• Shock Absorber Diameter - Front (mm): 30
• Shock Absorber Diameter - Rear (mm): 30
• Stabilizer Bar Diameter - Front (in): 1.10
• Stabilizer Bar Diameter - Rear (in): - TBD -
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 11 x 1.1
• Drum - Rear (Yes or ): Yes
• Rear Drum Diam x Width (in): 11.6 x 1.8
• Tires
• Front Tire Order Code: QCE
• Rear Tire Order Code: QCE
• Front Tire Size: P205/75R15
• Rear Tire Size: P205/75R15
• Spare Tire Size: Compact
• Front Tire Capacity (lbs): 2904
• Rear Tire Capacity (lbs): 2904
• Spare Tire Capacity (lbs): - TBD -
• Revolutions/Mile @ 45 mph - Front: - TBD -
• Revolutions/Mile @ 45 mph - Rear: - TBD -
• Revolutions/Mile @ 45 mph - Spare: - TBD -
• Wheels
• Front Wheel Size (in): 15 x 6
• Rear Wheel Size (in): 15 x 6
• Spare Wheel Size (in): Compact
• Front Wheel Material: Steel
• Rear Wheel Material: Steel
• Spare Wheel Material: Steel
• Steering
• Steering Type: Pwr
• Steering Ratio (:1), On Center: 17.4
• Steering Ratio (:1), At Lock: 3.31
• Turning Diameter - Curb to Curb (ft): 39.4
• Turning Diameter - Wall to Wall (ft): - TBD -
• Frame
• Frame Type: Ladder
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 19.6
• Fuel Tank Location: - TBD -
• Exterior Dimensions
• Wheelbase (in): 111.3
• Length, Overall w/o rear bumper (in): 192.4
• Width, Max w/o mirrors (in): 67.6
• Height, Overall (in): 64.9
• Overhang, Front (in): 33.9
• Overhang, Rear w/o bumper (in): - TBD -
• Front Bumper to Back of Cab (in): 110.9
• Cab to Axle (in): 34.2
• Cab to End of Frame (in): - TBD -
• Ground to Top of Load Floor (in): 26.9
• Ground to Top of Frame (in): - TBD -
• Frame Width, Rear (in): - TBD -
• Ground Clearance, Front (in): 7.3
• Ground Clearance, Rear (in): 7.3

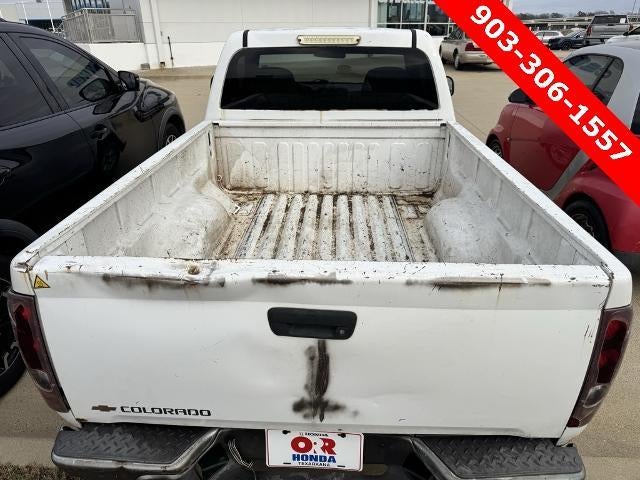

• Cargo Area Dimensions
• Cargo Box Length @ Floor (in): 72.8
• Cargo Box Width @ Floor (in): 57.2
• Cargo Box Width @ Wheelhousings (in): 42.6
• Cargo Box (Area) Height (in): 18.6
• Tailgate Width (in): 52.4
• Cargo Volume (ft³): 44
• Ext'd Cab Cargo Volume (ft³): - TBD -
• Interior Dimensions
• Passenger Capacity: 3
• Front Head Room (in): 39.6
• Front Leg Room (in): 42.2
• Front Shoulder Room (in): - TBD -
• Front Hip Room (in): 53.3
• Summary

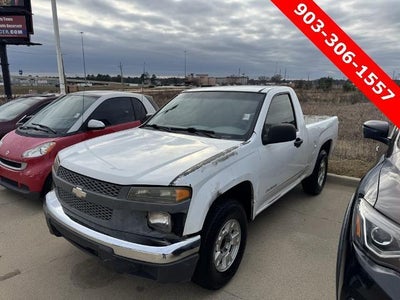

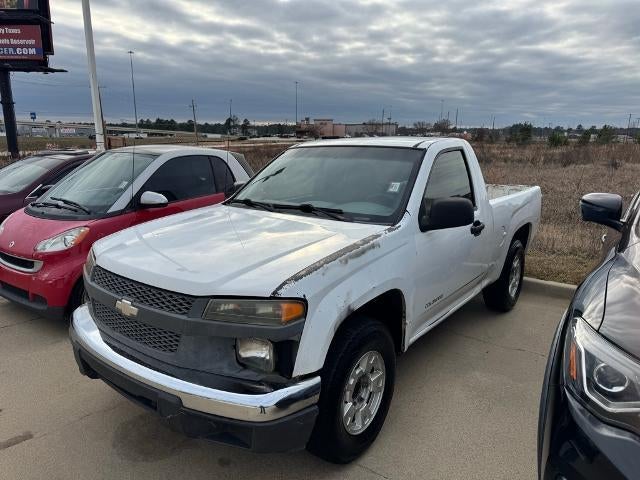

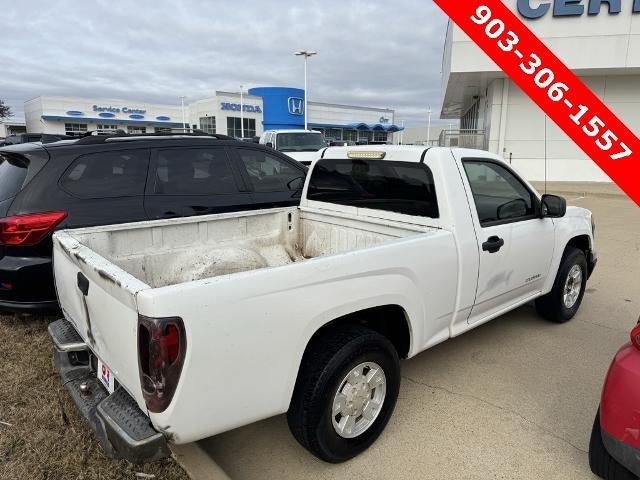

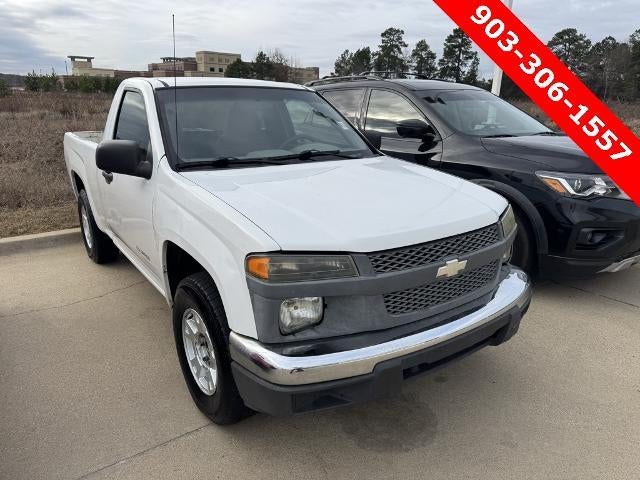

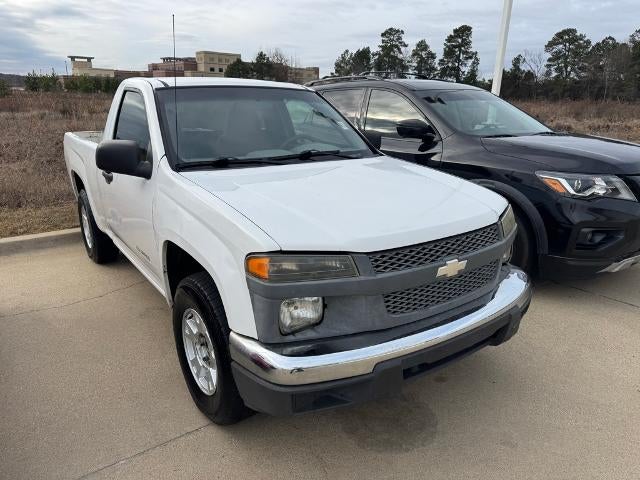

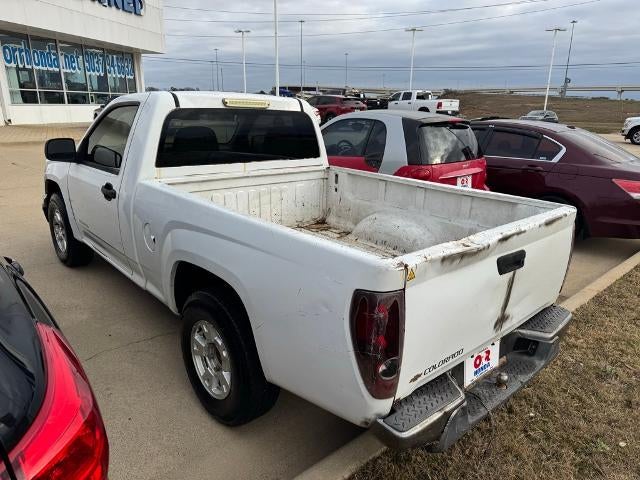

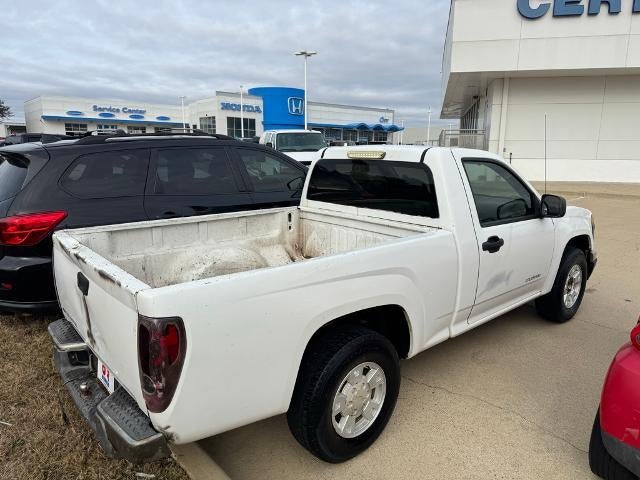

• Vehicle Name: Chevrolet Colorado
• Body Style: Regular Cab
• Body Code: E63
